Trino
Trino,fast distributed SQL query engine for big data analytics that helps you explore your data universe.
Helm Chart
Pull and extract helm chart:
Kerberos Authentication
Trino requires the following Kerberos principal:
trino@HOMELDAP.ORG # user to access other service for example HDFS, Hive etc.
HTTP/trino-coordinator.example.com@HOMELDAP.ORG # user that using kerberos authentication
trino-coordinator.example.com should be access URL of the coordinator. I used kube1 as coordinator URL.
My trino.keytab looks like below:
>klist -kte files/trino.keytab
Keytab name: FILE:files/trino.keytab
KVNO Timestamp Principal
---- ------------------- ------------------------------------------------------
1 01/14/2025 00:17:05 trino@HOMELDAP.ORG (aes128-cts-hmac-sha1-96)
1 01/14/2025 00:17:05 trino@HOMELDAP.ORG (aes256-cts-hmac-sha1-96)
1 01/14/2025 00:17:05 trino@HOMELDAP.ORG (aes128-cts-hmac-sha256-128)
1 04/21/2025 09:36:33 HTTP/kube1@HOMELDAP.ORG (aes128-cts-hmac-sha1-96)
1 04/21/2025 09:36:33 HTTP/kube1@HOMELDAP.ORG (aes256-cts-hmac-sha1-96)
1 04/21/2025 09:36:33 HTTP/kube1@HOMELDAP.ORG (aes128-cts-hmac-sha256-128)
Deploy the Kerberos keytab as a Kubernetes Secret:
TLS/HTTPS Settings
When using Kerberos authentication, access to the Trino coordinator must be through TLS and HTTPS.
Tip
You can use ssl.sh to create self-signed certs, in the repository.
Deploy keystore as Kubernetes secret:
Hadoop Proxy User/Impersonation
Add trino user to core-site.xml:
...
<property>
<name>hadoop.proxyuser.trino.hosts</name>
<value>*</value>
</property>
<property>
<name>hadoop.proxyuser.trino.groups</name>
<value>*</value>
</property>
<property>
<name>hadoop.proxyuser.trino.users</name>
<value>*</value>
</property>
...
Configuration
Tip
We are using Hive metastore as iceberg catalog. You can add more connections to Trino.
Tip
Trino provides very detailed helm chart documentation.
server:
workers: 1
coordinatorExtraConfig: |
internal-communication.shared-secret=aPM9WVbktUsslZ8amzrPmdCwQjUiMBcqTJMotIK7BrzLzANCYJQm6170qYMj//Oo+NKS7I9UrzdN
http-server.authentication.type=KERBEROS
http-server.authentication.krb5.service-name=HTTP
http-server.authentication.krb5.principal-hostname=kube1
http-server.authentication.krb5.keytab=/etc/security/keytabs/trino.keytab
http-server.authentication.krb5.user-mapping.pattern = (.*)(@.*)
http.authentication.krb5.config=/etc/krb5.conf
http-server.https.enabled=true
http-server.https.port=7778
http-server.https.keystore.path=/etc/security/certs/keystore
http-server.https.keystore.key=Bigdata1
workerExtraConfig: |
internal-communication.shared-secret=aPM9WVbktUsslZ8amzrPmdCwQjUiMBcqTJMotIK7BrzLzANCYJQm6170qYMj//Oo+NKS7I9UrzdN
image:
tag: "474"
coordinator:
configMounts:
- name: hadoop-config
configMap: hadoop-config
path: /hadoop-conf
- name: hive-site-config
configMap: hive-site-config
path: /hive-conf
worker:
configMounts:
- name: hadoop-config
configMap: hadoop-config
path: /hadoop-conf
- name: hive-site-config
configMap: hive-site-config
path: /hive-conf
configMounts:
- name: krb5conf
configMap: krb5conf
path: /etc/krb5.conf
subPath: krb5.conf
secretMounts:
- name: keytab-trino
secretName: keytab-trino
path: /etc/security/keytabs/
- name: trino-keystore
secretName: trino-keystore
path: /etc/security/certs/
additionalLogProperties:
- io.trino.plugin.hive.metastore.thrif=DEBUG
catalogs:
lakehouse: |-
connector.name=iceberg
hive.metastore.uri=thrift://metastore.company.bigdata.svc.cluster.local:9083
fs.hadoop.enabled = true
hive.config.resources = /hadoop-conf/core-site.xml, /hadoop-conf/hdfs-site.xml, /hive-conf/hive-site.xml
hive.hdfs.impersonation.enabled=false
hive.hdfs.authentication.type = KERBEROS
hive.hdfs.trino.principal = trino@HOMELDAP.ORG
hive.hdfs.trino.keytab = /etc/security/keytabs/trino.keytab
hive.metastore.authentication.type=KERBEROS
hive.metastore.thrift.impersonation.enabled=true
hive.metastore.service.principal=hive/_HOST@HOMELDAP.ORG
hive.metastore.client.principal=trino@HOMELDAP.ORG
hive.metastore.client.keytab=/etc/security/keytabs/trino.keytab
hive.metastore.thrift.client.connect-timeout=1h
hive.metastore.thrift.client.read-timeout=1h
iceberg.metadata-cache.enabled=false
accessControl:
type: configmap
configFile: "rules.json"
rules:
rules.json: |-
{
"impersonation": [
{
"original_user": "trino",
"new_user": ".*",
"allow": true
},
{
"original_user": "hue",
"new_user": ".*",
"allow": true
}
]
}
Tip
Modify deployment-coordinator.yaml and deployment-worker.yaml in Helm chart to mount krb5.confcorrectly and to add Kerberos server DNS records:
Deploy Trino:

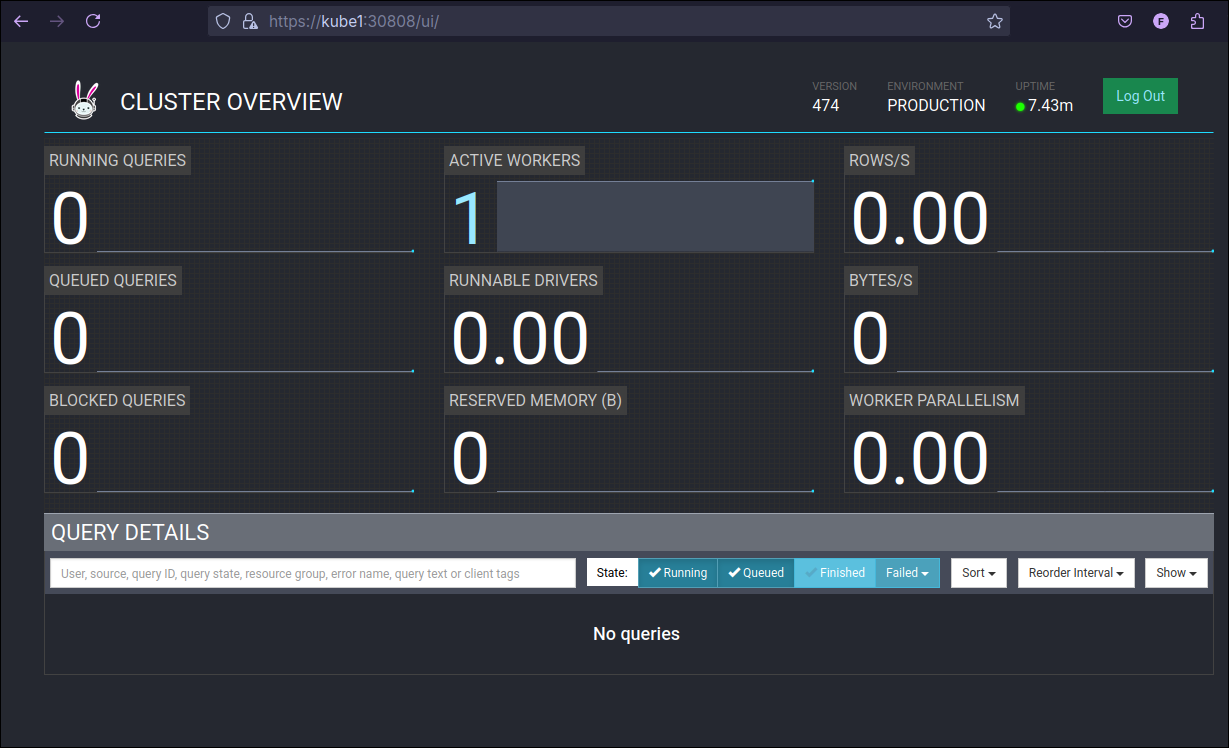

If you have a valid Kerberos ticket, you should access to Trino using Kerberos authentication. You may need do some configuration on your browser settings. Follow Cern Kerberos guide for required settings.

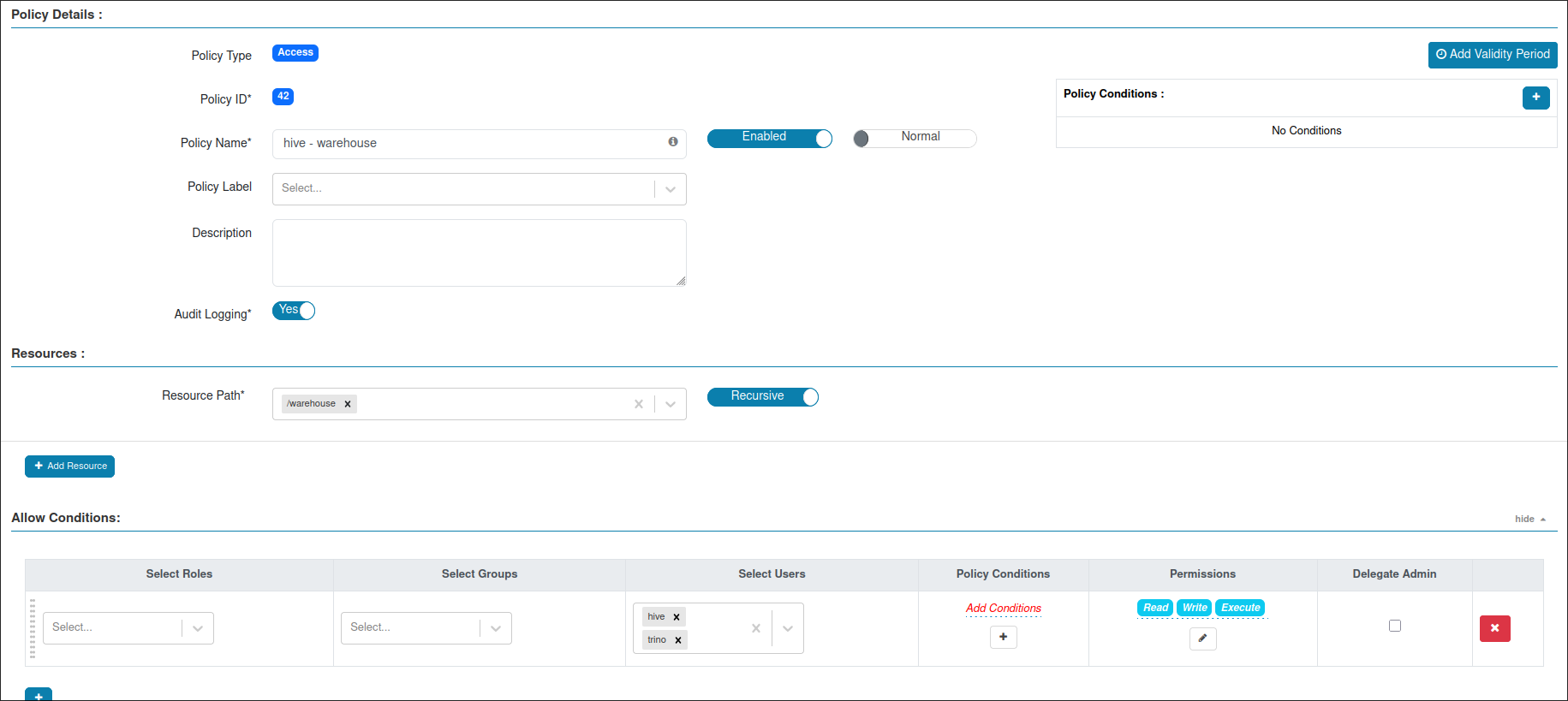

Ranger policies
Add trino user to /warehouse path access policy:
Access Trino using Hue
Add trino configurations to Hue values.yaml as interpreter.
...
name: "hue" # You must create hue database before deployment
interpreters: |
[[[trino]]]
name = Trino
interface=sqlalchemy
options='{"url": "trino://kube1:30808/lakehouse", "has_impersonation": true, "connect_args": "{\"protocol\": \"https\", \"KerberosKeytabPath\":\"/etc/security/keytabs/hue.keytab\", \"KerberosPrincipal\":\"hue@HOMELDAP.ORG\", \"KerberosRemoteServiceName\":\"HTTP\",\"KerberosCredentialCachePath\":\"/tmp/krb5cc_1001\",\"requests_kwargs\": {\"verify\": false}}"}'
ini: |
[desktop]
...

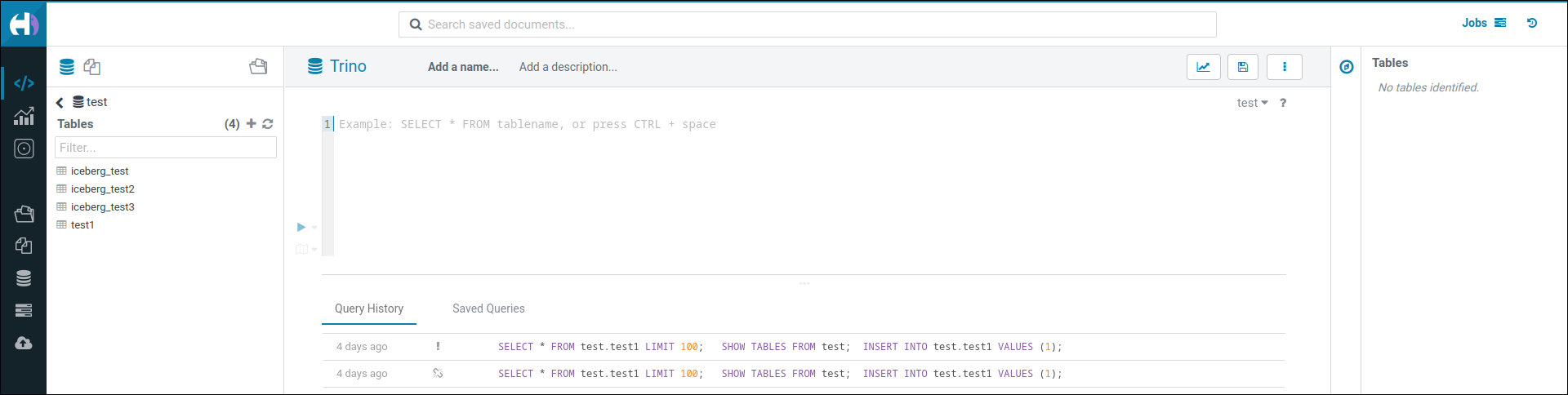

Now you should access Trino using Hue.
Authorization
Since Trino uses the Hive Metastore, and the Ranger plugin has already been installed on the Metastore, no additional authorization configuration is required. Trino will enforce the policies defined for the Hive tables. Accesses made from Trino are logged in the Ranger audit as the hiveMetastore application.
