Secure HDFS

Creating required principals and certificates

Kerberos Principals

HDFS requires both hdfs and host principals for each node. In this example, the Kerberos realm is HOMELDAP.ORG. The following principals need to be created:

hdfs/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG
host/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG
hdfs/datanode01.company.bigdata.svc.cluster.local@HOMELDAP.ORG
host/datanode01.company.bigdata.svc.cluster.local@HOMELDAP.ORG
hdfs/datanode02.company.bigdata.svc.cluster.local@HOMELDAP.ORG
host/datanode02.company.bigdata.svc.cluster.local@HOMELDAP.ORG
hdfs/datanode03.company.bigdata.svc.cluster.local@HOMELDAP.ORG
host/datanode03.company.bigdata.svc.cluster.local@HOMELDAP.ORG

Generate keytabs using ktutil:

ktutil
add_entry -password -p hdfs/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG -k 1 -e aes128-cts-hmac-sha1-96
add_entry -password -p hdfs/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG -k 1 -e aes256-cts-hmac-sha1-96
add_entry -password -p hdfs/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG -k 1 -e aes128-cts-hmac-sha256-128
add_entry -password -p host/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG -k 1 -e aes128-cts-hmac-sha1-96
add_entry -password -p host/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG -k 1 -e aes256-cts-hmac-sha1-96
add_entry -password -p host/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG -k 1 -e aes128-cts-hmac-sha256-128
wkt ./files/namenode.keytab

These keytabs should be deployed as Kubernetes Secrets:

kubectl create -n bigdata secret generic keytab-hdfs-namenode --from-file=./files/namenode.keytab
kubectl create -n bigdata secret generic keytab-hdfs-datanode-01 --from-file=datanode.keytab=./files/datanode01.keytab
kubectl create -n bigdata secret generic keytab-hdfs-datanode-02 --from-file=datanode.keytab=./files/datanode02.keytab
kubectl create -n bigdata secret generic keytab-hdfs-datanode-03 --from-file=datanode.keytab=./files/datanode03.keytab

krb5.conf

To allow Hadoop services to communicate with the KDC, a custom krb5.conf file is needed. Below is a sample configuration:

krb5.conf

[libdefaults]
default_realm = HOMELDAP.ORG
dns_canonicalize_hostname = true
[realms]
HOMELDAP.ORG = {
        admin_server = kdc.homeldap.org
        kdc = kdc.homeldap.org
}

Deploy it using:

kubectl create configmap krb5conf -n bigdata --from-file=krb5.conf=./files/krb5.conf

SSL Certificates

To enable secure communication, we need to generate a certificate, along with keystore and truststore files. It's important that the Common Name (CN) or Subject Alternative Names (SANs) in the certificate include the HDFS node hostnames. Wildcard certificates are supported by HDFS.

DOMAIN="*.company.bigdata.svc.cluster.local"    # Replace with your domain

A script for generating the required self-signed certificate and associated files is available in the GitHub repository.

Deploy the keystore and truststore as a Kubernetes Secret:

kubectl create -n bigdata secret generic keystore-hdfs --from-file=keystore=./files/keystore --from-file=truststore=./files/truststore

Configurations

Update the following configuration files: core-site.xml and hdfs-site.xml.

configs/core-site.xmlconfigs/hdfs-site.xml

<configuration>
  <property>
      <name>fs.defaultFS</name>
      <value>hdfs://namenode.company.bigdata.svc.cluster.local:9000</value>
  </property>
  <!-- Kerberos Configs -->
  <property>
      <name>hadoop.security.authentication</name>
      <value>kerberos</value>
  </property>
  <property>
      <name>hadoop.security.authorization</name>
      <value>true</value>
  </property>
  <property>
      <name>hadoop.rpc.protection</name>
      <value>authentication</value>
  </property>
  <property>
      <name>hadoop.security.auth_to_local</name>
      <value>
        RULE:[2:$1@$0](hdfs@HOMELDAP.ORG)s/(.*)@HOMELDAP.ORG/hdfs/
        RULE:[2:$1@$0](hive@HOMELDAP.ORG)s/(.*)@HOMELDAP.ORG/hive/
        RULE:[2:$1@$0](rangerlookup@HOMELDAP.ORG)s/(.*)@HOMELDAP.ORG/rangerlookup/
        RULE:[2:$1@$0](rangeradmin@HOMELDAP.ORG)s/(.*)@HOMELDAP.ORG/rangeradmin/
        DEFAULT
      </value>
  </property>

  <property>
      <name>hadoop.sql.require.client.cert</name>
      <value>false</value>
  </property>


</configuration>

<configuration>
  <property>
      <name>dfs.namenode.name.dir</name>
      <value>/hadoop/nn</value>
      <description>Determines where on the local filesystem the DFS name node
          should store the name table. If this is a comma-delimited list
          of directories then the name table is replicated in all of the
          directories, for redundancy. </description>
      <final>true</final>
  </property>
  <property>
      <name>dfs.datanode.data.dir</name>
      <value>/hadoop/disk1</value>
      <description>Determines where on the local filesystem an DFS data node
          should store its blocks. If this is a comma-delimited
          list of directories, then data will be stored in all named
          directories, typically on different devices.
          Directories that do not exist are ignored.
      </description>
      <final>true</final>
  </property>
  <property>
      <name>dfs.webhdfs.enable</name>
      <value>true</value>
  </property>
  <property>
      <name>dfs.heartbeat.interval</name>
      <value>3</value>
      <description>Determines datanode heartbeat interval in seconds.
      </description>
  </property>
  <property>
      <name>dfs.http.address</name>
      <value>0.0.0.0:50070</value>
      <description>The name of the default file system. Either the
          literal string "local" or a host:port for NDFS.
      </description>
      <final>true</final>
  </property>
  <property>
      <name>dfs.https.port</name>
      <value>50470</value>
      <description>The https port where namenode binds</description>
  </property>
  <property>
      <name>dfs.https.address</name>
      <value>0.0.0.0:50470</value>
      <description>The https address where namenode binds</description>
  </property>
  <property>
      <name>dfs.namenode.datanode.registration.ip-hostname-check</name>
      <value>false</value>
  </property>
  <property>
      <name>dfs.permissions.enabled</name>
      <value>true</value>
  </property>
  <property>
      <name>dfs.permissions</name>
      <value>true</value>
  </property>
  <property>
      <name>dfs.permissions.ContentSummary.subAccess</name>
      <value>true</value>
  </property>
  <property>
      <name>dfs.block.access.token.enable</name>
      <value>true</value>
  </property>
  <property>
      <name>dfs.namenode.kerberos.principal</name>
      <value>hdfs/_HOST@HOMELDAP.ORG</value>
  </property>
  <property>
      <name>dfs.namenode.keytab.file</name>
      <value>/etc/security/keytab/namenode.keytab</value>
  </property>
  <property>
      <name>dfs.namenode.kerberos.internal.spnego.principal</name>
      <value>hdfs/_HOST@HOMELDAP.ORG</value>
  </property>
  <property>
      <name>dfs.namenode.acls.enabled</name>
      <value>false</value>
  </property>
  <property>
      <name>dfs.datanode.data.dir.perm</name>
      <value>700</value>
  </property>
  <property>
      <name>dfs.datanode.address</name>
      <value>0.0.0.0:9866</value>
  </property>
  <property>
      <name>dfs.datanode.http.address</name>
      <value>0.0.0.0:9868</value>
  </property>
  <property>
      <name>dfs.datanode.https.address</name>
      <value>0.0.0.0:9865</value>
  </property>
  <property>
      <name>dfs.datanode.kerberos.principal</name>
      <value>hdfs/_HOST@HOMELDAP.ORG</value>
  </property>
  <property>
      <name>dfs.datanode.keytab.file</name>
      <value>/etc/security/keytab/datanode.keytab</value>
  </property>
  <property>
      <name>dfs.encrypt.data.transfer</name>
      <value>true</value>
  </property>
  <property>
      <name>dfs.encrypt.data.transfer.algorithm</name>
      <value>rc4</value>
  </property>
  <property>
      <name>dfs.data.transfer.protection</name>
      <value>integrity</value>
  </property>
  <property>
      <name>dfs.http.policy</name>
      <value>HTTPS_ONLY</value>
  </property>

</configuration>

To enable SSL, create a separate configuration file named ssl-server.xml:

Be sure to change the default passwords for both the keystore and truststore.

configs/ssl-server.xml

<configuration>
    <property>
        <name>ssl.server.keystore.location</name>
        <value>/etc/security/ssl/keystore</value>
        <description>Keystore to be used. Must be specified.
        </description>
    </property>
    <property>
        <name>ssl.server.keystore.password</name>
        <value>Bigdata1</value>
    </property>
    <property>
        <name>ssl.server.keystore.keypassword</name>
        <value>Bigdata1</value>
    </property>
    <property>
        <name>ssl.server.keystore.type</name>
        <value>JKS</value>
    </property>
    <property>
        <name>ssl.server.truststore.type</name>
        <value>JKS</value>
    </property>
    <property>
        <name>ssl.server.truststore.location</name>
        <value>/etc/security/ssl/truststore</value>
        <description>Truststore to be used by NN and DN. Must be specified.
        </description>
    </property>
    <property>
        <name>ssl.server.truststore.password</name>
        <value>Bigdata1</value>
        <description>Optional. Default value is "".
        </description>
    </property>
</configuration>

To apply the updated configuration, delete and recreate the config map:

kubectl delete configmap hadoop-config -n bigdata
kubectl create configmap hadoop-config -n bigdata --from-file=core-site.xml=./configs/core-site.xml --from-file=hdfs-site.xml=./configs/hdfs-site.xml  --from-file=ssl-server.xml=./configs/ssl-server.xml

KDC Server DNS

To resolve the KDC server inside pods, use the hostAliases feature to update the /etc/hosts file. This step may not be required if your cluster is configured with DNS resolution for the KDC.

namenode.yaml/datanode_01.yaml

...
spec:
  nodeSelector:
    kubernetes.io/hostname: "kube1"
  hostname: namenode
  subdomain: company
  hostAliases:
  - ip: "192.168.1.52"
    hostnames:
    - "kdc.homeldap.org"
  containers:
  - name: namenode
    image: apache/hadoop:3.4.1
...

Make sure the IP address corresponds to the actual IP of KDC server.

Mounting Configs and Secrets

Mount the configuration files and secrets in Hadoop service manifests.

namenode.yamldatanode_01.yaml

...

volumeMounts:
- name: hadoop-config
  mountPath: /opt/hadoop/etc/hadoop/ssl-server.xml
  subPath: ssl-server.xml
- name: krb5conf
  mountPath: /etc/krb5.conf
  subPath: krb5.conf
- name: keytab-hdfs-namenode
  mountPath: /etc/security/keytab/namenode.keytab
  subPath: namenode.keytab
- name: keystore-hdfs
  mountPath: /etc/security/ssl/

...

volumes:
- name: krb5conf
  configMap:
    name: krb5conf
- name: keytab-hdfs-namenode
  secret:
    secretName: keytab-hdfs-namenode
- name: keystore-hdfs
  secret:
    secretName: keystore-hdfs
...

...

volumeMounts:
- name: hadoop-config
  mountPath: /opt/hadoop/etc/hadoop/ssl-server.xml
  subPath: ssl-server.xml
- name: krb5conf
  mountPath: /etc/krb5.conf
  subPath: krb5.conf
- name: keytab-hdfs-datanode-01
  mountPath: /etc/security/keytab/datanode.keytab
  subPath: datanode.keytab
- name: keystore-hdfs
  mountPath: /etc/security/ssl/

...

volumes:
- name: krb5conf
  configMap:
    name: krb5conf
- name: keytab-hdfs-datanode-01
  secret:
    secretName: keytab-hdfs-datanode-01
- name: keystore-hdfs
  secret:
    secretName: keystore-hdfs
...

Finally, redeploy the services:

kubectl apply -f namenode.yaml
kubectl apply -f datanode_01.yaml
kubectl apply -f datanode_02.yaml
kubectl apply -f datanode_03.yaml

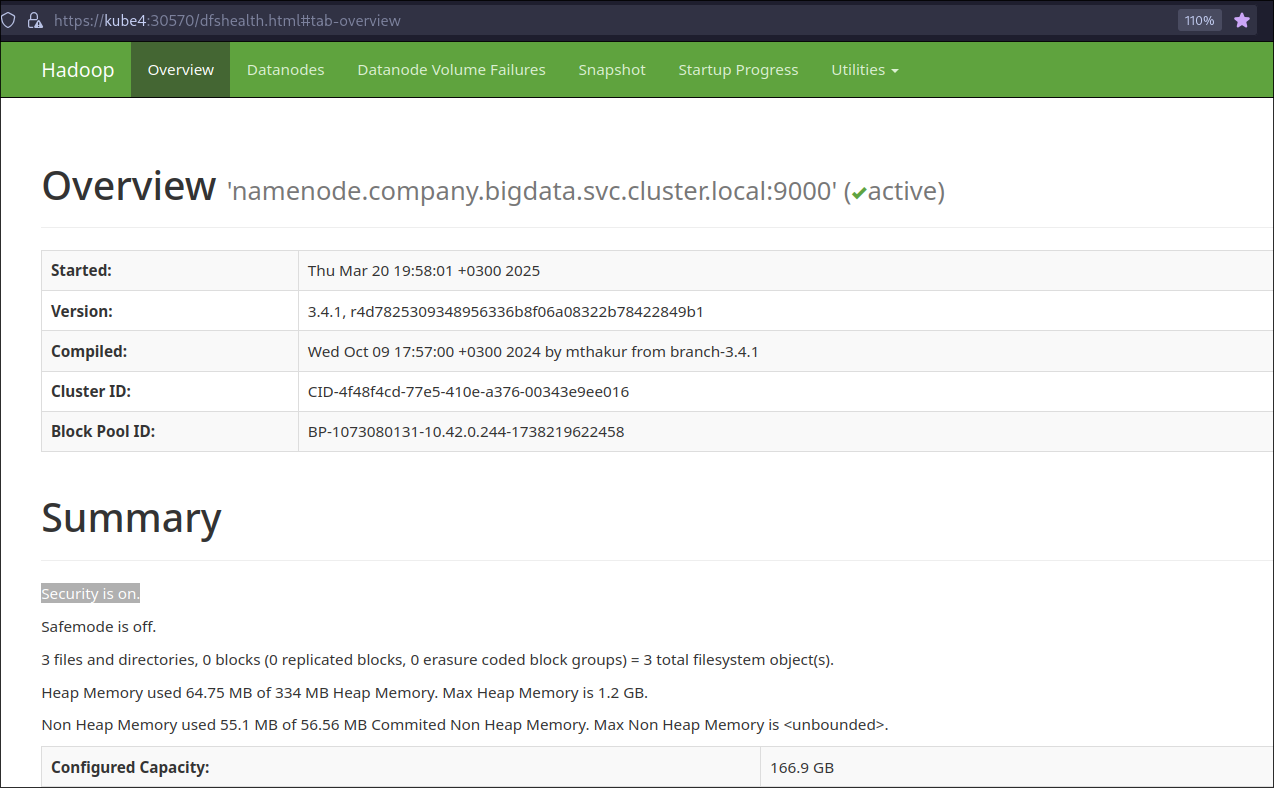

You can access secure namenode WEB UI via https://dns_or_ip_of_any_k8s_node:30570

Test

To test the setup, start by accessing the NameNode container:

kubectl -n bigdata exec -it namenode -- bash

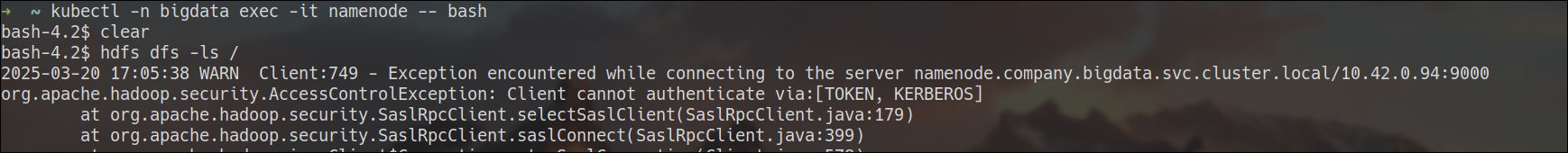

Running HDFS commands without obtaining a Kerberos ticket will result in an authentication error:

To authenticate, run the following command:

kinit -kt /etc/security/keytab/namenode.keytab hdfs/namenode.company.bigdata.svc.cluster.local@HOMELDAP.ORG

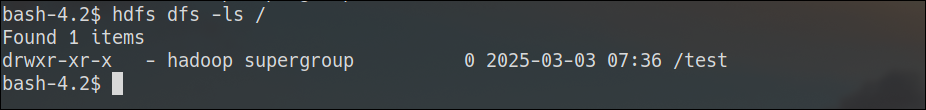

Once authenticated, HDFS commands should work as expected:
