HDFS Plugin

Docker Image

Copy the ranger-3.0.0-SNAPSHOT-hdfs-plugin.tar.gz file into the hdfs/files directory.

Dockerfile

FROM apache/hadoop:3.4.1

USER root
RUN mkdir /ranger
RUN chown hadoop:hadoop /ranger
RUN mkdir -p /etc/ranger
RUN chown -R hadoop:root /etc/ranger
RUN mkdir -p /var/log/hadoop/hdfs/audit/solr/spool
RUN chown -R hadoop:root /var/log/hadoop/hdfs/audit/solr/spool
USER hadoop
COPY files/ranger-3.0.0-SNAPSHOT-hdfs-plugin.tar.gz /ranger/ranger-3.0.0-SNAPSHOT-hdfs-plugin.tar.gz
WORKDIR /ranger
RUN tar -xvf /ranger/ranger-3.0.0-SNAPSHOT-hdfs-plugin.tar.gz
RUN chmod +x /ranger/ranger-3.0.0-SNAPSHOT-hdfs-plugin/enable-hdfs-plugin.sh

WORKDIR /opt/hadoop
USER root

This Dockerfile copies and extracts the plugin, then sets the necessary permissions.

Build and push docker image:

docker build -t kube5:30123/custom/hadoop:3.4.1 .
docker push kube5:30123/custom/hadoop:3.4.1

Plugin Configuration

Ranger HDFS plugin requires an install.properties file. A sample configuration is included in the plugin archive.

Warning

Update following properties:

• POLICY_MGR_URL=http://ranger.company.bigdata.svc.cluster.local:6080
• REPOSITORY_NAME=dev_hdfs
• COMPONENT_INSTALL_DIR_NAME=/opt/hadoop/
• XAAUDIT.SOLR.ENABLE=true
• XAAUDIT.SOLR.URL=http://192.168.1.65:30983/solr/ranger_audits
• XAAUDIT.HDFS.ENABLE=true
• XAAUDIT.HDFS.HDFS_DIR=hdfs://namenode.company.bigdata.svc.cluster.local:9000/ranger/audit

install.properties

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#
# Location of Policy Manager URL
#
# Example:
# POLICY_MGR_URL=http://policymanager.xasecure.net:6080
#
POLICY_MGR_URL=http://ranger.company.bigdata.svc.cluster.local:6080

#
# This is the repository name created within policy manager
#
# Example:
# REPOSITORY_NAME=hadoopdev
#
REPOSITORY_NAME=dev_hdfs
#
# Set hadoop home when hadoop program and Ranger HDFS Plugin are not in the
# same path.
#
COMPONENT_INSTALL_DIR_NAME=/opt/hadoop/

# AUDIT configuration with V3 properties
# Enable audit logs to Solr
#Example
#XAAUDIT.SOLR.ENABLE=true
#XAAUDIT.SOLR.URL=http://localhost:6083/solr/ranger_audits
#XAAUDIT.SOLR.ZOOKEEPER=
#XAAUDIT.SOLR.FILE_SPOOL_DIR=/var/log/hadoop/hdfs/audit/solr/spool

XAAUDIT.SOLR.ENABLE=true
XAAUDIT.SOLR.URL=http://192.168.1.65:30983/solr/ranger_audits
XAAUDIT.SOLR.USER=NONE
XAAUDIT.SOLR.PASSWORD=NONE
XAAUDIT.SOLR.ZOOKEEPER=NONE
XAAUDIT.SOLR.FILE_SPOOL_DIR=/var/log/hadoop/hdfs/audit/solr/spool

# Enable audit logs to ElasticSearch
#Example
#XAAUDIT.ELASTICSEARCH.ENABLE=true
#XAAUDIT.ELASTICSEARCH.URL=localhost
#XAAUDIT.ELASTICSEARCH.INDEX=audit

XAAUDIT.ELASTICSEARCH.ENABLE=false
XAAUDIT.ELASTICSEARCH.URL=NONE
XAAUDIT.ELASTICSEARCH.USER=NONE
XAAUDIT.ELASTICSEARCH.PASSWORD=NONE
XAAUDIT.ELASTICSEARCH.INDEX=NONE
XAAUDIT.ELASTICSEARCH.PORT=NONE
XAAUDIT.ELASTICSEARCH.PROTOCOL=NONE

# Enable audit logs to HDFS
#Example
#XAAUDIT.HDFS.ENABLE=true
#XAAUDIT.HDFS.HDFS_DIR=hdfs://node-1.example.com:8020/ranger/audit
#XAAUDIT.HDFS.FILE_SPOOL_DIR=/var/log/hadoop/hdfs/audit/hdfs/spool
#  If using Azure Blob Storage
#XAAUDIT.HDFS.HDFS_DIR=wasb[s]://<containername>@<accountname>.blob.core.windows.net/<path>
#XAAUDIT.HDFS.HDFS_DIR=wasb://ranger_audit_container@my-azure-account.blob.core.windows.net/ranger/audit

XAAUDIT.HDFS.ENABLE=true
XAAUDIT.HDFS.HDFS_DIR=hdfs://namenode.company.bigdata.svc.cluster.local:9000/ranger/audit
XAAUDIT.HDFS.FILE_SPOOL_DIR=/var/log/hadoop/hdfs/audit/hdfs/spool

# Following additional propertis are needed When auditing to Azure Blob Storage via HDFS
# Get these values from your /etc/hadoop/conf/core-site.xml
#XAAUDIT.HDFS.HDFS_DIR=wasb[s]://<containername>@<accountname>.blob.core.windows.net/<path>
XAAUDIT.HDFS.AZURE_ACCOUNTNAME=__REPLACE_AZURE_ACCOUNT_NAME
XAAUDIT.HDFS.AZURE_ACCOUNTKEY=__REPLACE_AZURE_ACCOUNT_KEY
XAAUDIT.HDFS.AZURE_SHELL_KEY_PROVIDER=__REPLACE_AZURE_SHELL_KEY_PROVIDER
XAAUDIT.HDFS.AZURE_ACCOUNTKEY_PROVIDER=__REPLACE_AZURE_ACCOUNT_KEY_PROVIDER

#Log4j Audit Provider
XAAUDIT.LOG4J.ENABLE=false
XAAUDIT.LOG4J.IS_ASYNC=false
XAAUDIT.LOG4J.ASYNC.MAX.QUEUE.SIZE=10240
XAAUDIT.LOG4J.ASYNC.MAX.FLUSH.INTERVAL.MS=30000
XAAUDIT.LOG4J.DESTINATION.LOG4J=true
XAAUDIT.LOG4J.DESTINATION.LOG4J.LOGGER=xaaudit

# Enable audit logs to Amazon CloudWatch Logs
#Example
#XAAUDIT.AMAZON_CLOUDWATCH.ENABLE=true
#XAAUDIT.AMAZON_CLOUDWATCH.LOG_GROUP=ranger_audits
#XAAUDIT.AMAZON_CLOUDWATCH.LOG_STREAM={instance_id}
#XAAUDIT.AMAZON_CLOUDWATCH.FILE_SPOOL_DIR=/var/log/hive/audit/amazon_cloudwatch/spool

XAAUDIT.AMAZON_CLOUDWATCH.ENABLE=false
XAAUDIT.AMAZON_CLOUDWATCH.LOG_GROUP=NONE
XAAUDIT.AMAZON_CLOUDWATCH.LOG_STREAM_PREFIX=NONE
XAAUDIT.AMAZON_CLOUDWATCH.FILE_SPOOL_DIR=NONE
XAAUDIT.AMAZON_CLOUDWATCH.REGION=NONE

# End of V3 properties

#
#  Audit to HDFS Configuration
#
# If XAAUDIT.HDFS.IS_ENABLED is set to true, please replace tokens
# that start with __REPLACE__ with appropriate values
#  XAAUDIT.HDFS.IS_ENABLED=true
#  XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
#  XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=__REPLACE__LOG_DIR/hadoop/%app-type%/audit
#  XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=__REPLACE__LOG_DIR/hadoop/%app-type%/audit/archive
#
# Example:
#  XAAUDIT.HDFS.IS_ENABLED=true
#  XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://namenode.example.com:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
#  XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=/var/log/hadoop/%app-type%/audit
#  XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=/var/log/hadoop/%app-type%/audit/archive
#
XAAUDIT.HDFS.IS_ENABLED=false
XAAUDIT.HDFS.DESTINATION_DIRECTORY=hdfs://__REPLACE__NAME_NODE_HOST:8020/ranger/audit/%app-type%/%time:yyyyMMdd%
XAAUDIT.HDFS.LOCAL_BUFFER_DIRECTORY=__REPLACE__LOG_DIR/hadoop/%app-type%/audit
XAAUDIT.HDFS.LOCAL_ARCHIVE_DIRECTORY=__REPLACE__LOG_DIR/hadoop/%app-type%/audit/archive

XAAUDIT.HDFS.DESTINTATION_FILE=%hostname%-audit.log
XAAUDIT.HDFS.DESTINTATION_FLUSH_INTERVAL_SECONDS=900
XAAUDIT.HDFS.DESTINTATION_ROLLOVER_INTERVAL_SECONDS=86400
XAAUDIT.HDFS.DESTINTATION_OPEN_RETRY_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_FILE=%time:yyyyMMdd-HHmm.ss%.log
XAAUDIT.HDFS.LOCAL_BUFFER_FLUSH_INTERVAL_SECONDS=60
XAAUDIT.HDFS.LOCAL_BUFFER_ROLLOVER_INTERVAL_SECONDS=600
XAAUDIT.HDFS.LOCAL_ARCHIVE_MAX_FILE_COUNT=10

#Solr Audit Provider
XAAUDIT.SOLR.IS_ENABLED=false
XAAUDIT.SOLR.MAX_QUEUE_SIZE=1
XAAUDIT.SOLR.MAX_FLUSH_INTERVAL_MS=1000
XAAUDIT.SOLR.SOLR_URL=http://192.168.1.65:30983/solr/ranger_audits

# End of V2 properties

#
# SSL Client Certificate Information
#
# Example:
# SSL_KEYSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-keystore.jks
# SSL_KEYSTORE_PASSWORD=none
# SSL_TRUSTSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-truststore.jks
# SSL_TRUSTSTORE_PASSWORD=none
#
# You do not need use SSL between agent and security admin tool, please leave these sample value as it is.
#
SSL_KEYSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-keystore.jks
SSL_KEYSTORE_PASSWORD=myKeyFilePassword
SSL_TRUSTSTORE_FILE_PATH=/etc/hadoop/conf/ranger-plugin-truststore.jks
SSL_TRUSTSTORE_PASSWORD=changeit

#
# Custom component user
# CUSTOM_COMPONENT_USER=<custom-user>
# keep blank if component user is default
CUSTOM_USER=hdfs


#
# Custom component group
# CUSTOM_COMPONENT_GROUP=<custom-group>
# keep blank if component group is default
CUSTOM_GROUP=hadoop

Tip

Ensure XAAUDIT.SOLR.URL is accessible from outside Kubernetes for audit logs.

Create a ConfigMap for the plugin configuration:

kubectl create configmap hdfs-ranger-config -n bigdata --from-file=install.properties=./files/install.properties

Updating the Ranger Service

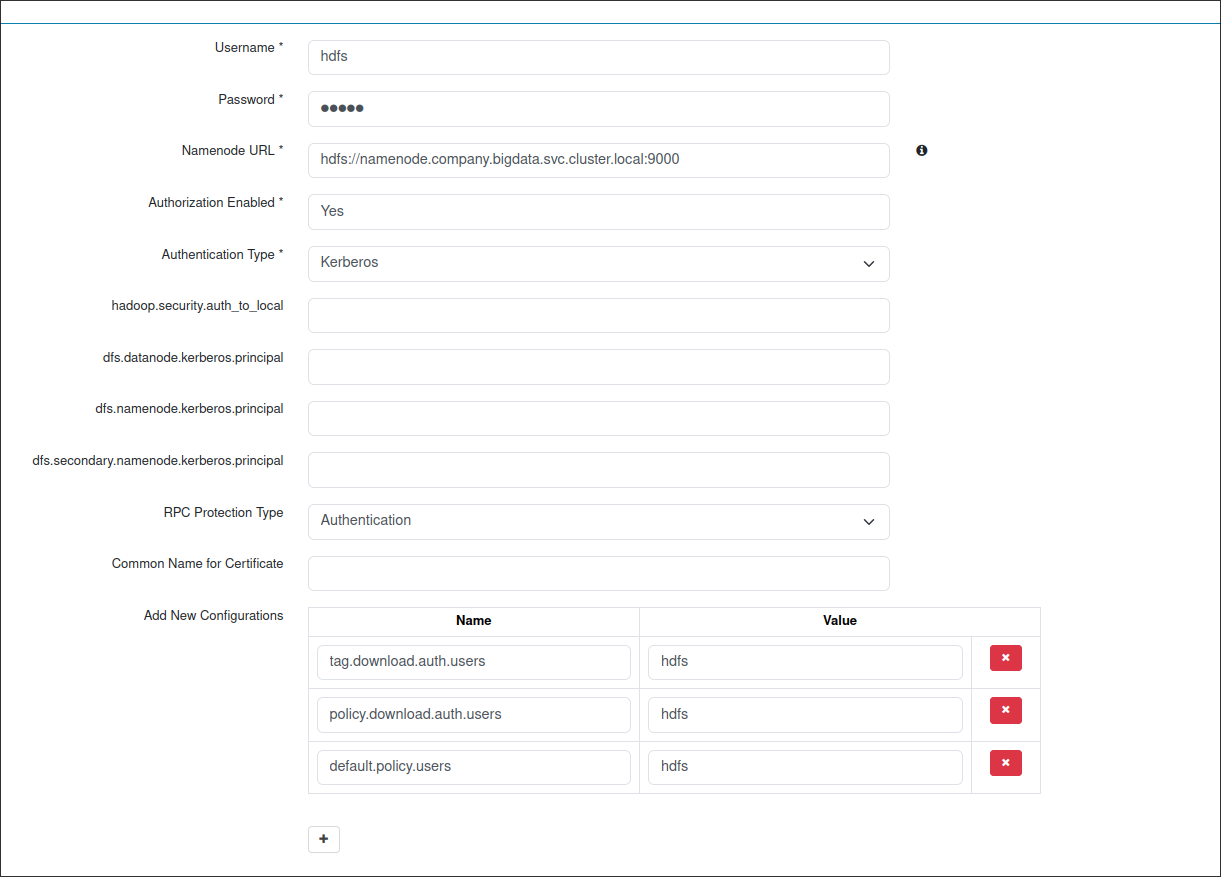

In the Ranger UI, update the dev_hdfs service settings.

Warning

Ensure the following configurations are set:

• tag.download.auth.users
• policy.download.auth.users
• default.policy.users

Without these, the plugin will fail to download policies from the Ranger Admin.

Disable Hadoop ACLS (Optional)

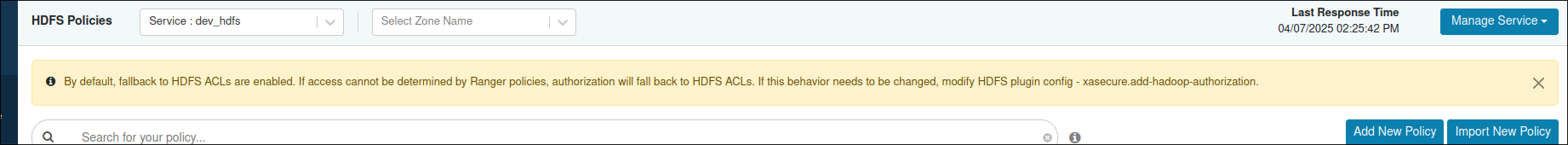

By default, Ranger falls back to Hadoop ACLs if no policy matches. To disable this behavior, update the ranger-hdfs-security.xml file:

...
  <property>
        <name>xasecure.add-hadoop-authorization</name>
        <value>false</value>
        <description>
            Enable/Disable the default hadoop authorization (based on
            rwxrwxrwx permission on the resource) if Ranger Authorization fails.
        </description>
    </property>
...

Redeploy the ConfigMap:

kubectl delete configmap hdfs-ranger-config -n bigdata
kubectl create configmap hdfs-ranger-config -n bigdata --from-file=install.properties=./files/install.properties --from-file=ranger-hdfs-security.xml=./files/ranger-hdfs-security.xml

HDFS Configuration

Modify the namenode.yaml manifest to run the enable-hdfs-plugin.sh script as root. Since the Docker image runs as root, use the runuser command to start the NameNode as the hadoop user. Also, mount the hdfs-ranger-config ConfigMap.

...
    image: kube5:30123/custom/hadoop:3.4.1
    command: ["/bin/bash", "-c"]
    args:
    - |
      /ranger/ranger-3.0.0-SNAPSHOT-hdfs-plugin/enable-hdfs-plugin.sh
      if [ ! -d "/hadoop/nn/current" ]; then
          runuser -u hadoop -- hdfs namenode -format -force
      fi
      runuser -u hadoop -- hdfs namenode

    resources:
...

volumeMounts:
...
    - name: hdfs-ranger-config
      mountPath: /ranger/ranger-3.0.0-SNAPSHOT-hdfs-plugin/install.properties
      subPath: install.properties
    - name: hdfs-ranger-config
      mountPath: /ranger/ranger-3.0.0-SNAPSHOT-hdfs-plugin/install/conf.templates/enable/ranger-hdfs-security.xml
      subPath: ranger-hdfs-security.xml
  volumes:
...
  - name: hdfs-ranger-config
    configMap:
      name: hdfs-ranger-config
...

Add the following property to hdfs-site.xml to enable the Ranger HDFS Authorizer:

...
    <property>
        <name>dfs.namenode.inode.attributes.provider.class</name>
        <value>org.apache.ranger.authorization.hadoop.RangerHdfsAuthorizer</value>
    </property>
...

Verifying the Plugin

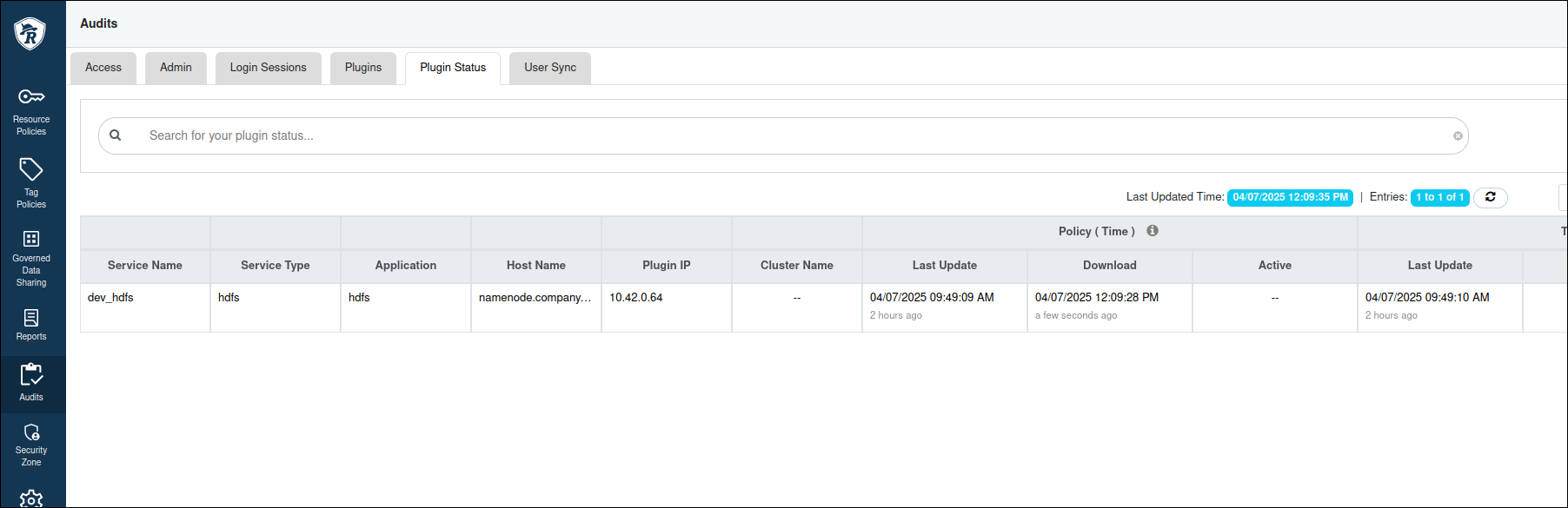

Once the plugin is successfully started, its status will appear in the Ranger UI under the Plugin Status page:

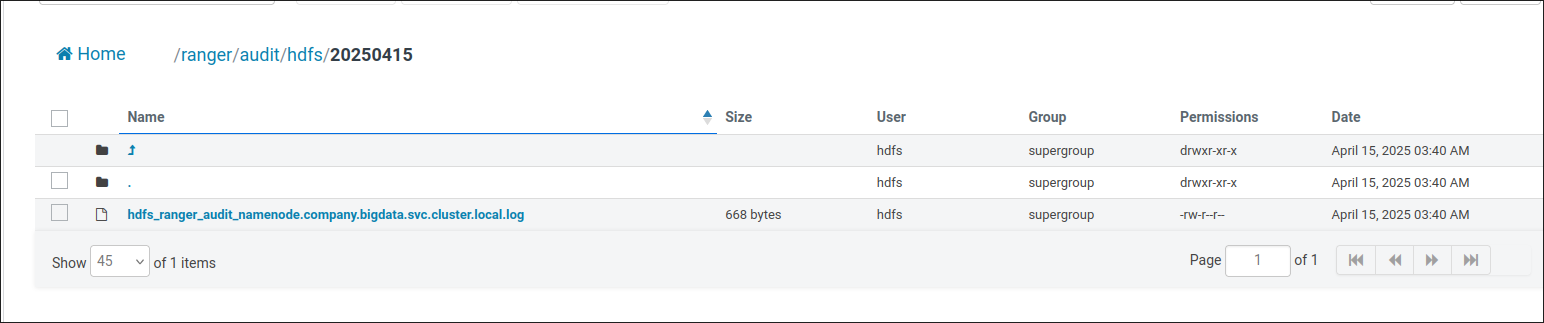

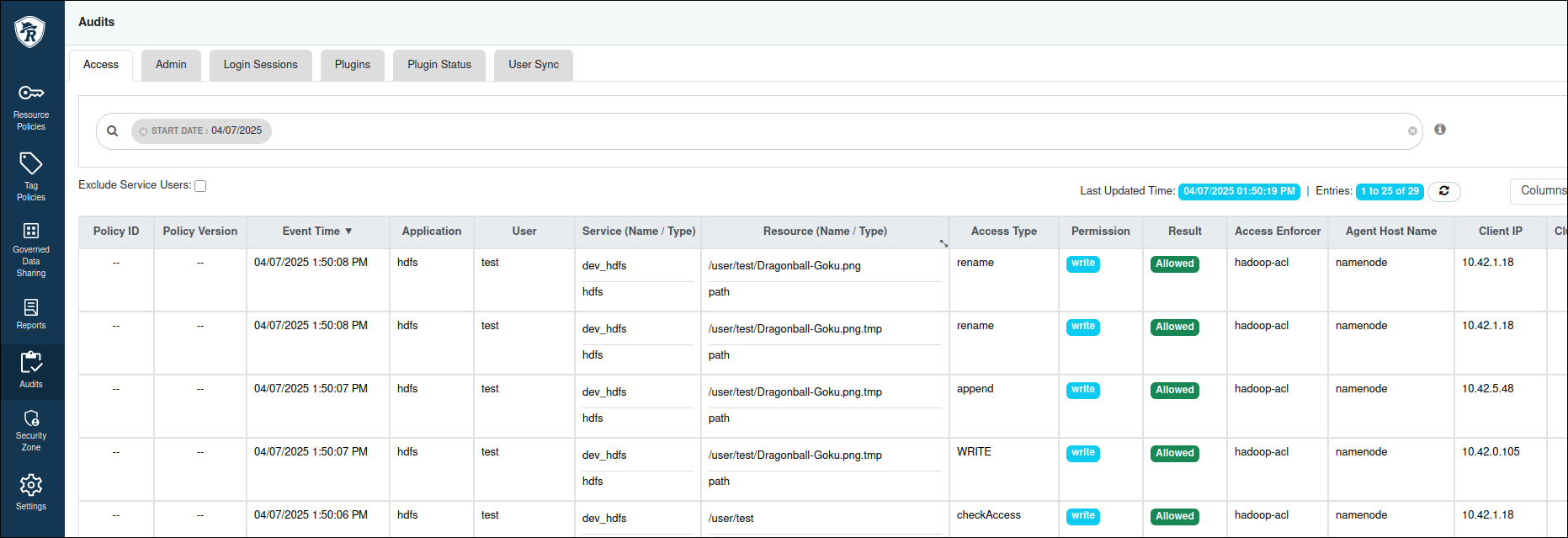

Audit logs will also be visible in the Ranger Audit section and also HDFS:

Example HDFS Policies

Here are some sample policies you can configure in Ranger:

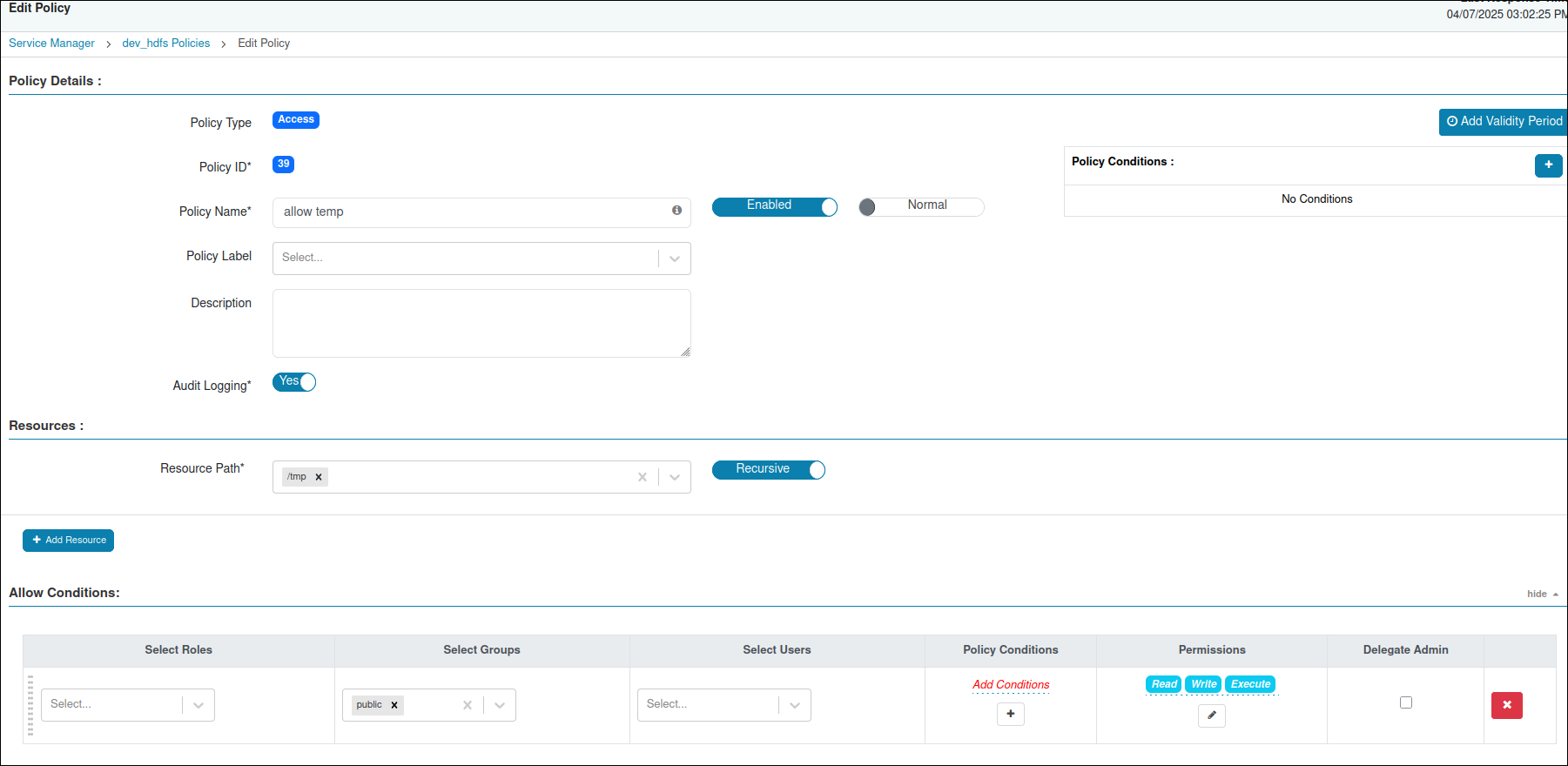

• /tmp Path Permissions

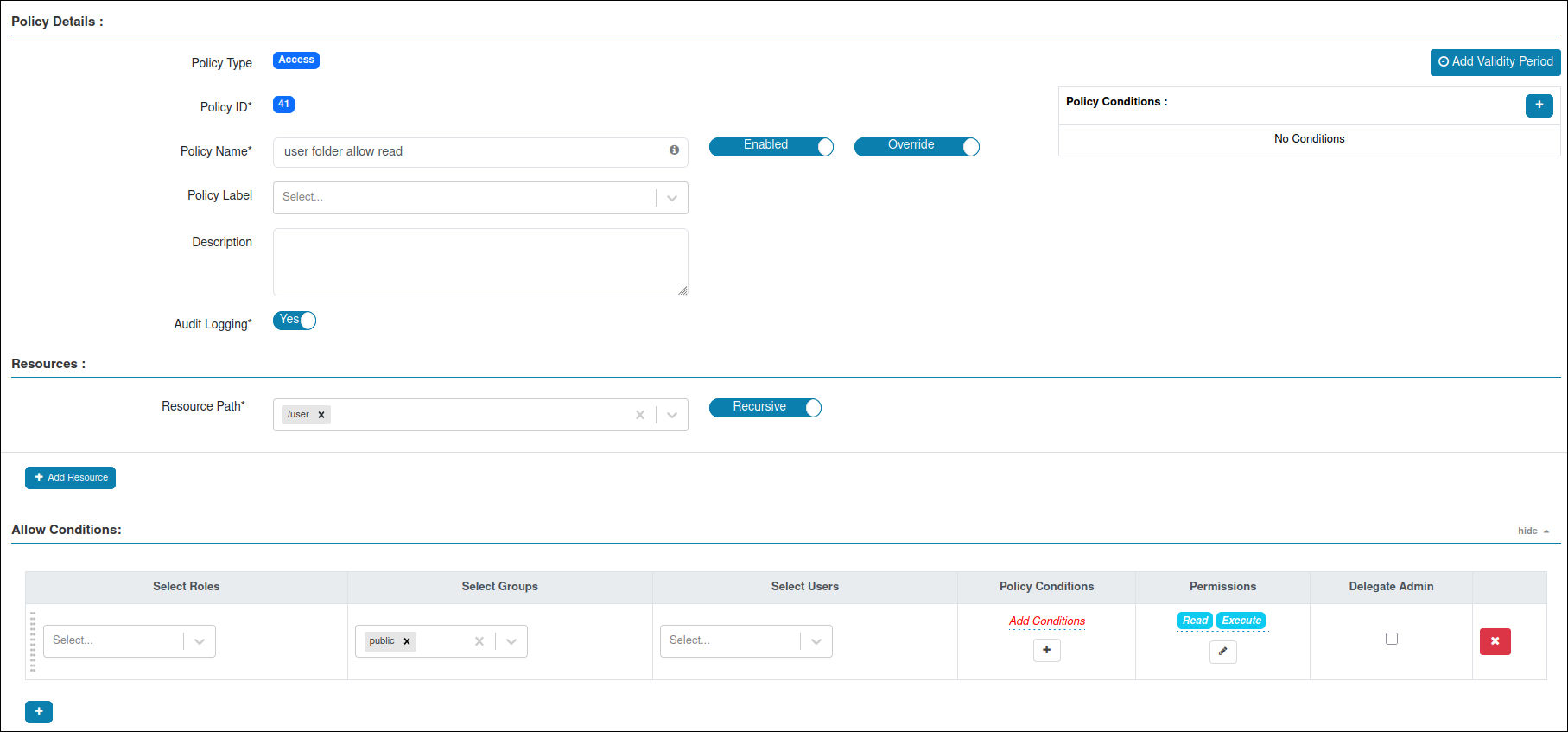

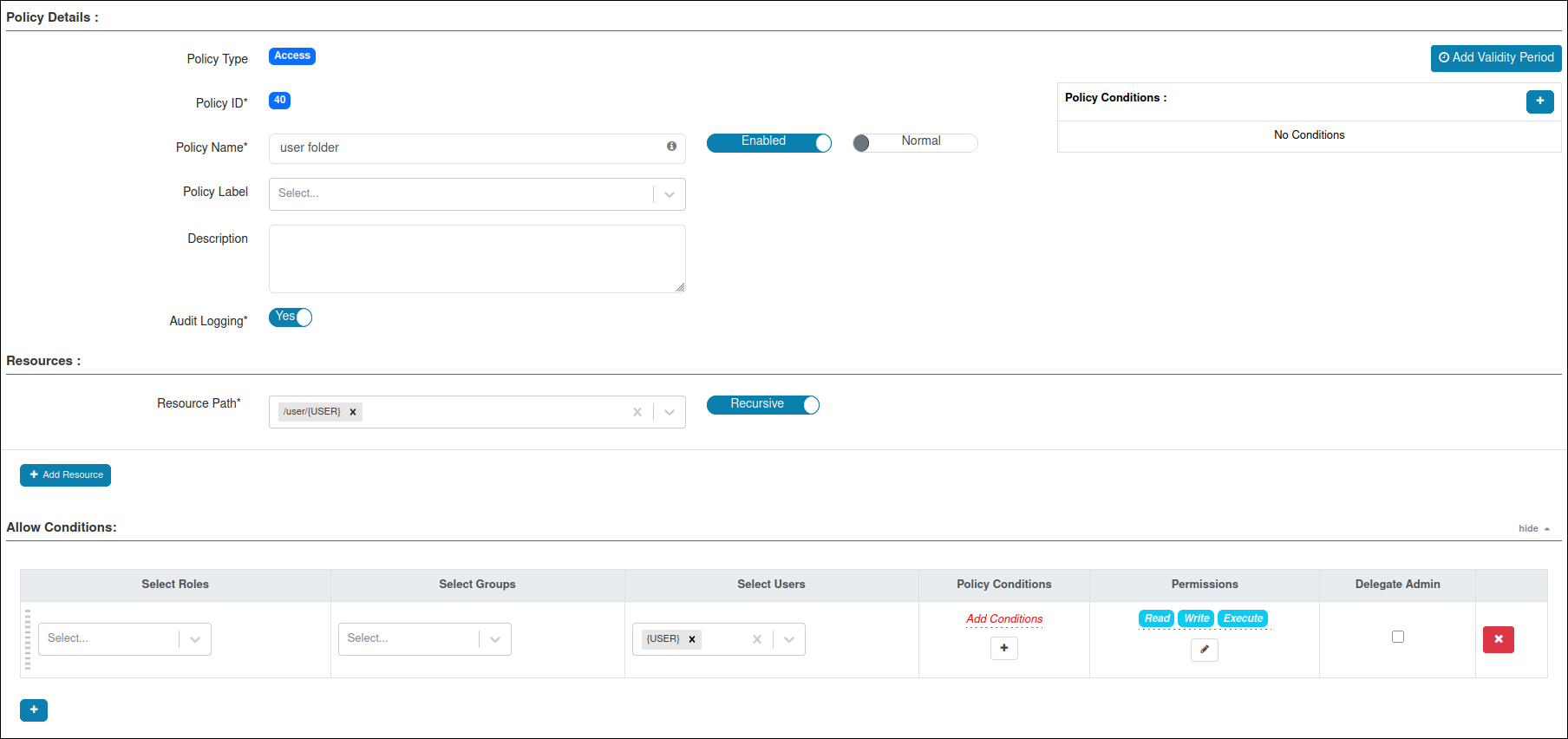

• /user Path Permissions

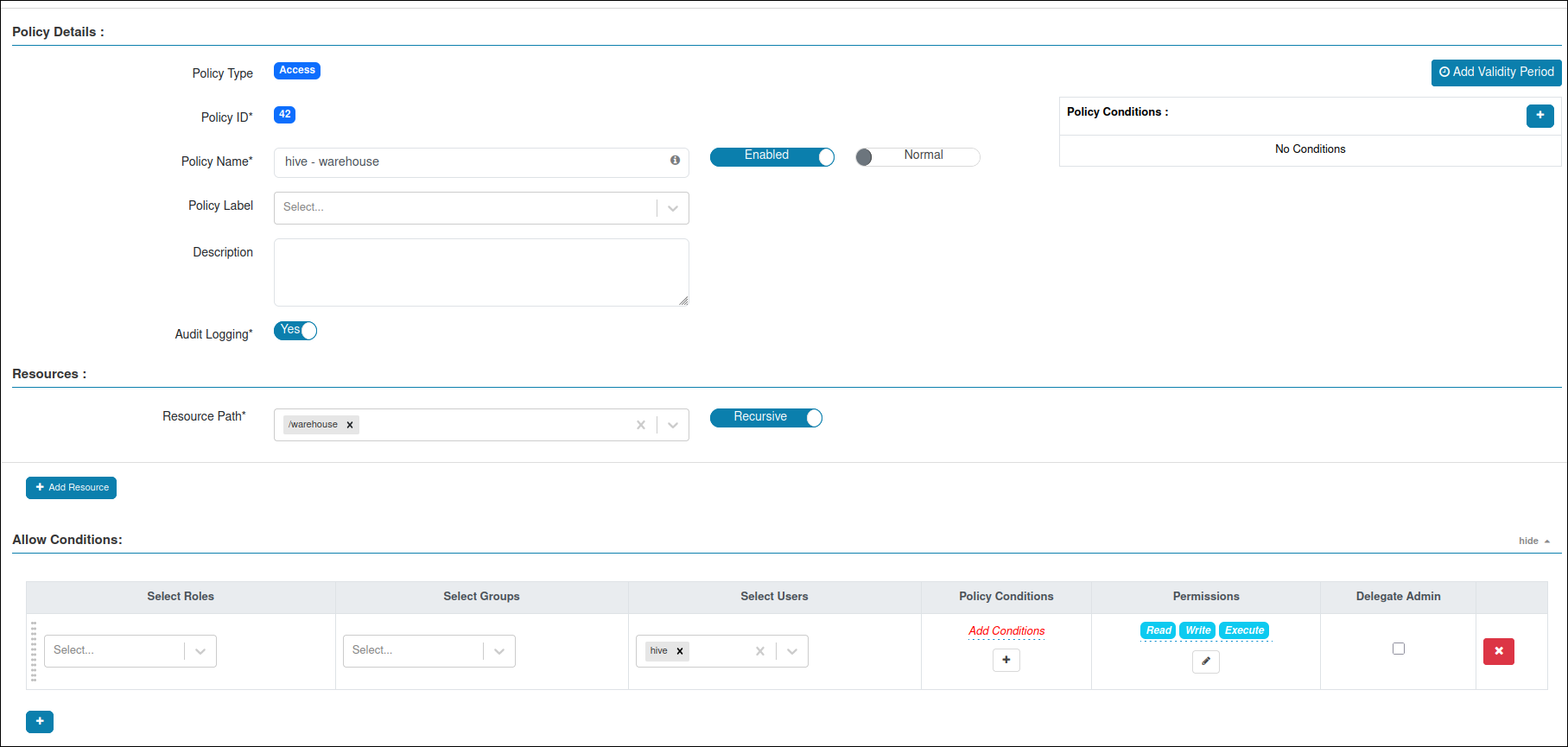

• hive User Access to warehouse

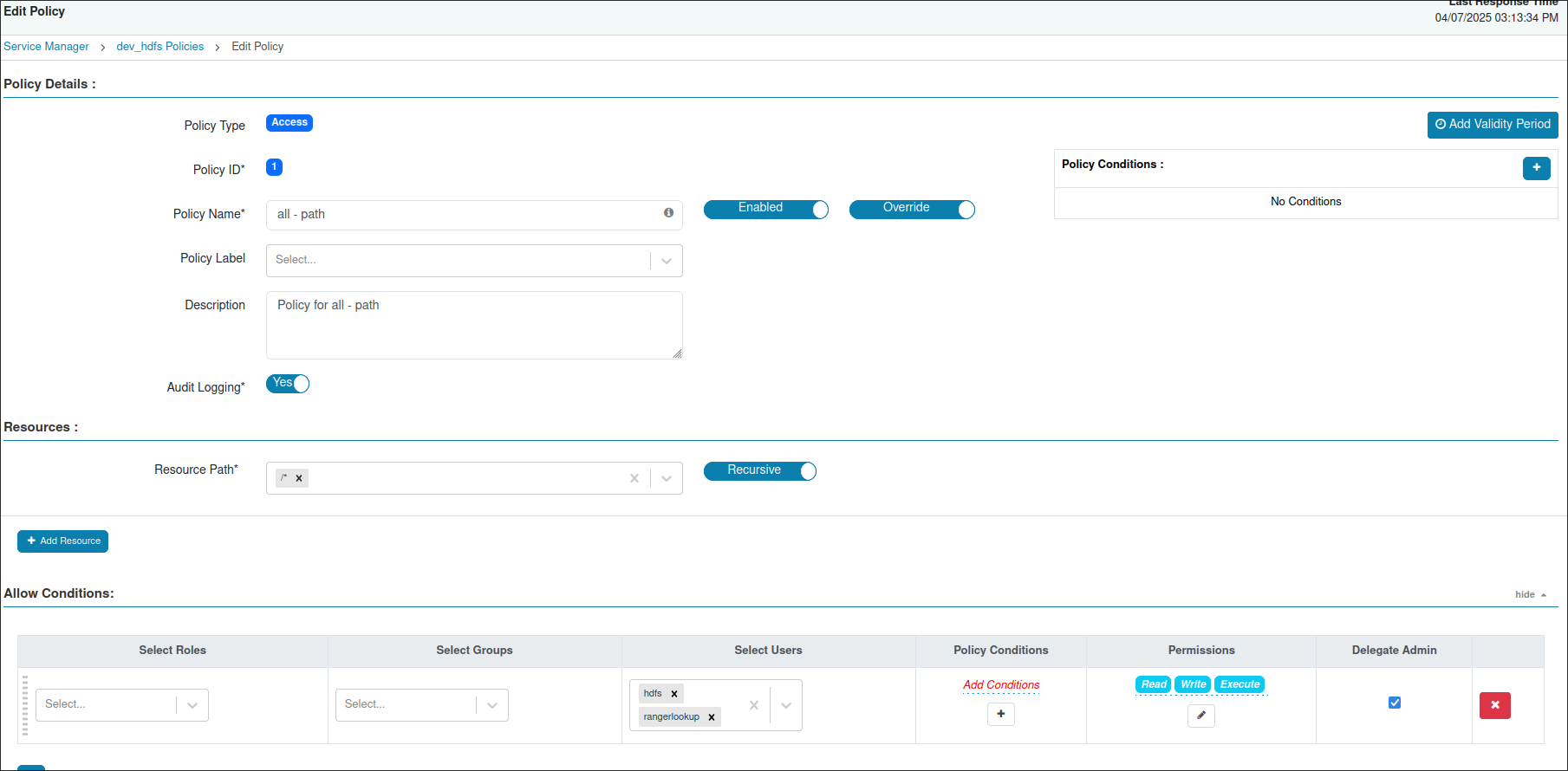

• rangerlookup Permissions
