Apache Ranger

Apache Ranger™ is a framework designed to enable, monitor, and manage comprehensive data security across the Hadoop ecosystem.

Ranger Admin provides a user interface for managing policies and auditing. Plugins periodically fetch policies from the Ranger Admin and must be installed in the same environment as the services they protect. In Kubernetes, these plugins need to run within the same container as the service. Therefore, we must create Docker images that include the Ranger plugins for Hive and HDFS.

The Ranger installation process can be divided into two phases:

  1. Ranger Admin setup
  2. Service plugin installation

Building Ranger

Apache Ranger does not provide pre-built Docker images or plugins. As a result, we need to build the Docker images and plugins manually before proceeding with the installation.

Run the following commands to clone the Apache Ranger repository:

git clone https://github.com/apache/ranger.git
cd ranger

Warning

The changes below are just workaround. link

By default, Hive Metastore plugin support is disabled in the Ranger Hive Plugin. To enable it, modify the following section in hive-agent/src/main/java/org/apache/ranger/authorization/hive/authorizer/RangerHiveAuthorizer.java:

...
if (sessionContext != null) {
     switch (sessionContext.getClientType()) {
          case HIVECLI:
               appType = "hiveCLI";
               break;

          case HIVESERVER2:
               appType = "hiveServer2";
               break;

          /* !!! UNCOMMENT !!! */
          case HIVEMETASTORE:
               appType = "hiveMetastore";
               break;

          case OTHER:
               appType = "other";
               break;
     }
}
...
To resolve a bug related to setting the owner of databases or tables, update the setOwnerUser function as follows:
    static void setOwnerUser(RangerHiveResource resource, HivePrivilegeObject hiveObj, IMetaStoreClient metaStoreClient, Map<String, String> objOwners) {
        if (hiveObj != null) {
            resource.setOwnerUser(hiveObj.getOwnerName());
        }

        LOG.debug("setOwnerUser({}): ownerName={}", hiveObj, resource.getOwnerUser());
    }

After applying the necessary changes, build Ranger Docker images and plugins using the following command. Ensure Docker is installed and running on your system:

export ENABLED_RANGER_SERVICES="tagsync,hadoop,hbase,kafka,hive,knox,kms"
./ranger_in_docker up

Warning

This process can take up to an hour to complete.

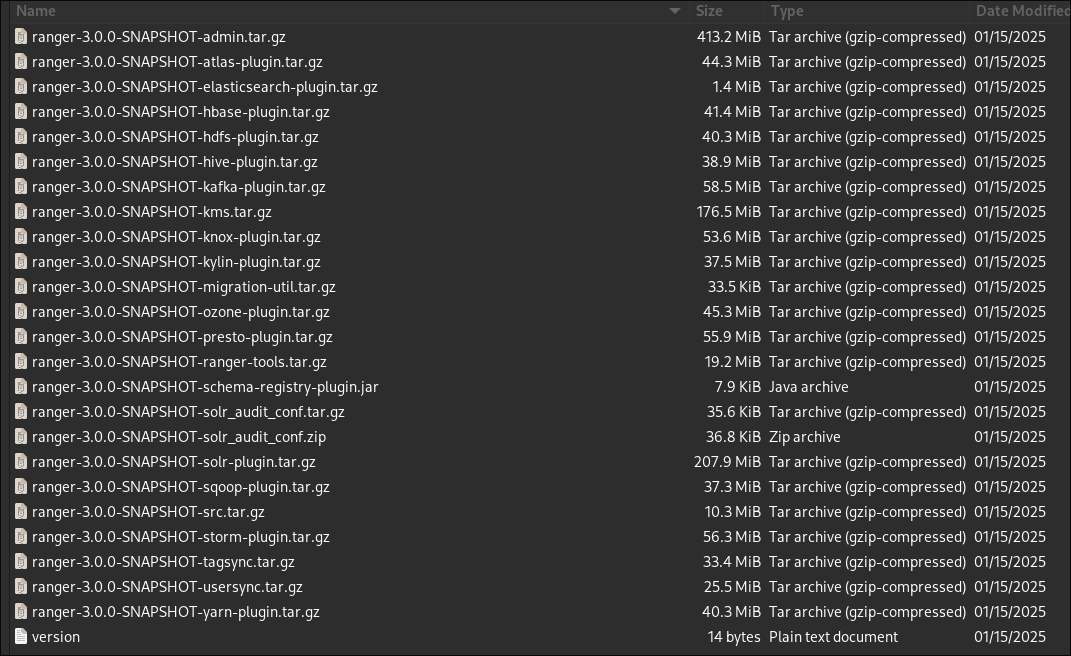

Once the build is finished, the plugins will be available in the ranger/dev-support/ranger-docker/dist/ directory.

alt text

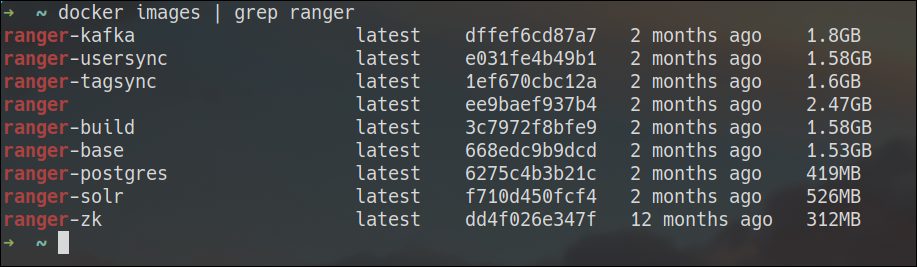

The required Docker images will also be generated:

alt text

The build process creates a development environment with many unnecessary Docker services. You can disable them using the following command:

./ranger_in_docker down
For Hive and HDFS, we will need the following:

  • ranger-3.0.0-SNAPSHOT-hive-plugin.tar.gz
  • ranger-3.0.0-SNAPSHOT-hdfs-plugin.tar.gz
  • ranger and ranger-usersync Docker images

Warning

If you plan to use Ranger with other services, you will need the corresponding service plugins.

Tag and push the ranger Docker image to your Docker repository:

docker tag ranger:latest kube5:30123/ranger:latest
docker push kube5:30123/ranger:latest

Kerberos Configuration

The Ranger Admin server requires the following Kerberos principals:

HTTP/ranger.company.bigdata.svc.cluster.local@HOMELDAP.ORG
rangeradmin/ranger.company.bigdata.svc.cluster.local@HOMELDAP.ORG
rangerlookup/ranger.company.bigdata.svc.cluster.local@HOMELDAP.ORG

Deploy the Kerberos keytabs as a Kubernetes Secret:

kubectl create -n bigdata secret generic keytab-ranger --from-file=spnego.keytab=./files/spnego.keytab --from-file=rangeradmin.keytab=./files/rangeradmin.keytab --from-file=rangerlookup.keytab=./files/rangerlookup.keytab

Solr Integration

Ranger uses Solr to monitor audit logs in real time. The required Solr configuration files are included in the repository. Deploy Solr and its configurations using the following commands:

kubectl create configmap solr-config -n bigdata --from-file=solrconfig.xml=./ranger_configs/solrconfig.xml --from-file=managed-schema=./ranger_configs/managed-schema
kubectl apply -f solr.yaml

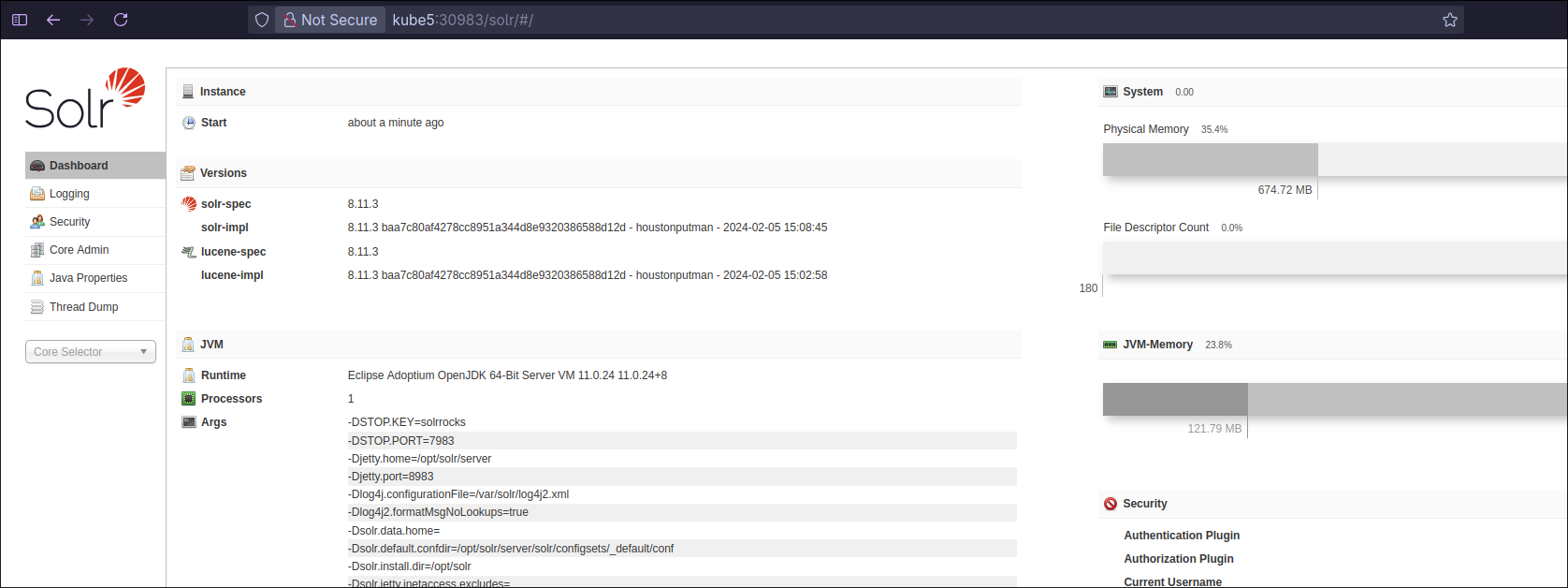

You can access the Solr Admin UI via the NodePort service at http://dns_or_ip_of_any_k8s_node:30983.

alt text

Ranger Admin Setup

Ranger Admin requires configuration files. Below is an example of the minimal configuration needed. Update the database settings to match your environment.

Ranger requires backend database, you may need to change related database configurations in accordance with your environment.

PYTHON_COMMAND_INVOKER=python3
RANGER_ADMIN_LOG_DIR=/var/log/ranger
RANGER_PID_DIR_PATH=/var/run/ranger
DB_FLAVOR=POSTGRES
SQL_CONNECTOR_JAR=/usr/share/java/postgresql.jar
RANGER_ADMIN_LOGBACK_CONF_FILE=/opt/ranger/admin/ews/webapp/WEB-INF/classes/conf/logback.xml

db_root_user=root
db_root_password=142536
db_host=192.168.122.18:5432

db_name=ranger
db_user=root
db_password=142536

postgres_core_file=db/postgres/optimized/current/ranger_core_db_postgres.sql
postgres_audit_file=db/postgres/xa_audit_db_postgres.sql
mysql_core_file=db/mysql/optimized/current/ranger_core_db_mysql.sql
mysql_audit_file=db/mysql/xa_audit_db.sql

rangerAdmin_password=rangerR0cks!
rangerTagsync_password=rangerR0cks!
rangerUsersync_password=rangerR0cks!
keyadmin_password=rangerR0cks!


audit_store=solr
audit_solr_urls=http://solr.company.bigdata.svc.cluster.local:8983/solr/ranger_audits
audit_solr_collection_name=ranger_audits

# audit_store=elasticsearch
audit_elasticsearch_urls=
audit_elasticsearch_port=9200
audit_elasticsearch_protocol=http
audit_elasticsearch_user=elastic
audit_elasticsearch_password=elasticsearch
audit_elasticsearch_index=ranger_audits
audit_elasticsearch_bootstrap_enabled=true

policymgr_external_url=http://ranger.company.bigdata.svc.cluster.local:6080
policymgr_http_enabled=true

unix_user=ranger
unix_user_pwd=ranger
unix_group=ranger

# Following variables are referenced in db_setup.py. Do not remove these
oracle_core_file=
sqlserver_core_file=
sqlanywhere_core_file=
cred_keystore_filename=


# #------------ Kerberos Config -----------------
spnego_principal= HTTP/ranger.company.bigdata.svc.cluster.local@HOMELDAP.ORG
spnego_keytab= /etc/security/keytabs/spnego.keytab
token_valid=30
cookie_domain=
cookie_path=/
admin_principal= rangeradmin/ranger.company.bigdata.svc.cluster.local@HOMELDAP.ORG
admin_keytab= /etc/security/keytabs/rangeradmin.keytab
lookup_principal= rangerlookup/ranger.company.bigdata.svc.cluster.local@HOMELDAP.ORG
lookup_keytab= /etc/security/keytabs/rangerlookup.keytab
hadoop_conf=/hadoop-conf

# #################  DO NOT MODIFY ANY VARIABLES BELOW #########################
#
# --- These deployment variables are not to be modified unless you understand the full impact of the changes
#
################################################################################
XAPOLICYMGR_DIR=$PWD
app_home=$PWD/ews/webapp
TMPFILE=$PWD/.fi_tmp
LOGFILE=$PWD/logfile
LOGFILES="$LOGFILE"

JAVA_BIN='java'
JAVA_VERSION_REQUIRED='1.8'

ranger_admin_max_heap_size=1g
#retry DB and Java patches after the given time in seconds.
PATCH_RETRY_INTERVAL=120
STALE_PATCH_ENTRY_HOLD_TIME=10

authentication_method=NONE

<category name="org.apache.ranger" additivity="false">
<priority value="debug" />
<appender-ref ref="xa_log_appender" />
</category>

Deploy ranger configurations as ConfigMap:

kubectl create configmap ranger-config -n bigdata --from-file=ranger-admin-install.properties=./configs/ranger-admin-install.properties --from-file=log4j.xml=./configs/log4j.xml

Use the following YAML file to deploy Ranger Admin:

apiVersion: v1
kind: Pod
metadata:
  name: ranger
  namespace: bigdata
  labels:
    name: ranger
    app: ranger
    dns: hdfs-subdomain
spec:
  hostname: ranger
  subdomain: company
  containers:
  - name: ranger
    image: kube5:30123/ranger:latest
    imagePullPolicy: Always
    resources:
      limits:
        memory: "2G"
        cpu: "500m"
    volumeMounts:
    - name: ranger-config
      mountPath: /opt/ranger/admin/install.properties
      subPath: ranger-admin-install.properties
    - name: ranger-config
      mountPath: /opt/ranger/admin/ews/webapp/WEB-INF/log4j.xml
      subPath: log4j.xml
    - name: keytab-ranger
      mountPath: /etc/security/keytabs/
    - name: hadoop-config
      mountPath: /hadoop-conf
    - name: krb5conf
      mountPath: /etc/krb5.conf
      subPath: krb5.conf
  volumes:
  - name: ranger-config
    configMap:
      name: ranger-config
  - name: hadoop-config
    configMap:
      name: hadoop-config
  - name: keytab-ranger
    secret:
      secretName: keytab-ranger
  - name: krb5conf
    configMap:
      name: krb5conf
---
apiVersion: v1
kind: Service
metadata:
  name: ranger-np
  namespace: bigdata
spec:
  type: NodePort
  selector:
    app: ranger
  ports:
  - port: 6080
    targetPort: 6080
    nodePort: 30680


kubectl apply -f ranger.yaml

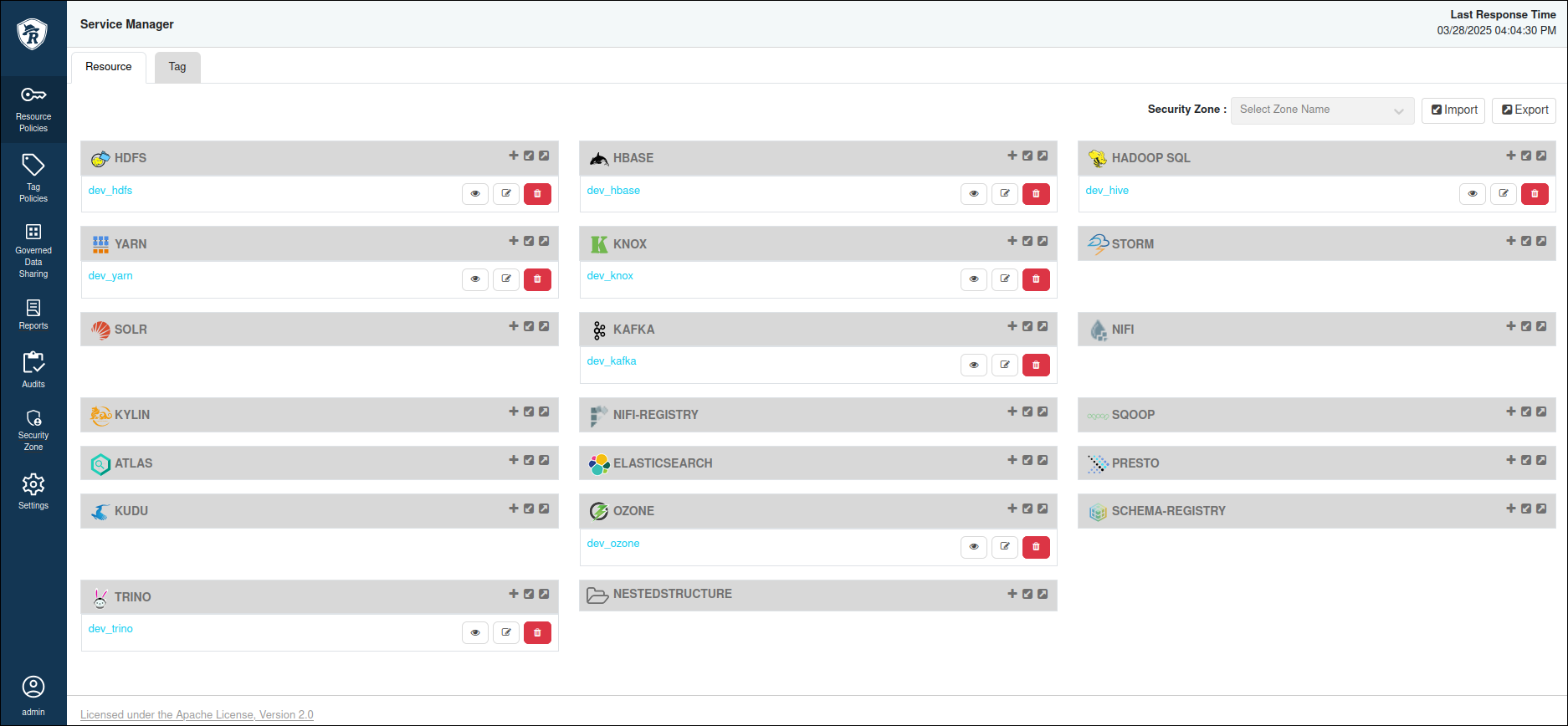

The firs run takes some minutes. Once deployed, you can access the Ranger Admin UI at http://dns_or_ip_of_any_k8s_node:30680

Username: admin
Password: rangerR0cks!

alt text

Ranger UserSync

Ranger UserSync periodically synchronizes users from LDAP or UNIX into the Ranger database. If you don’t need this feature, you can manually add users via the Ranger Admin UI under Admin > Users. Ranger only verifies the username, so you can assign any password.

The ranger-usersync Docker image built earlier can be used if you decide to enable UserSync in the future.
